View In:   ArcGIS Online Map Viewer

Name: Federal Aid

Display Field: FROM_DATE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

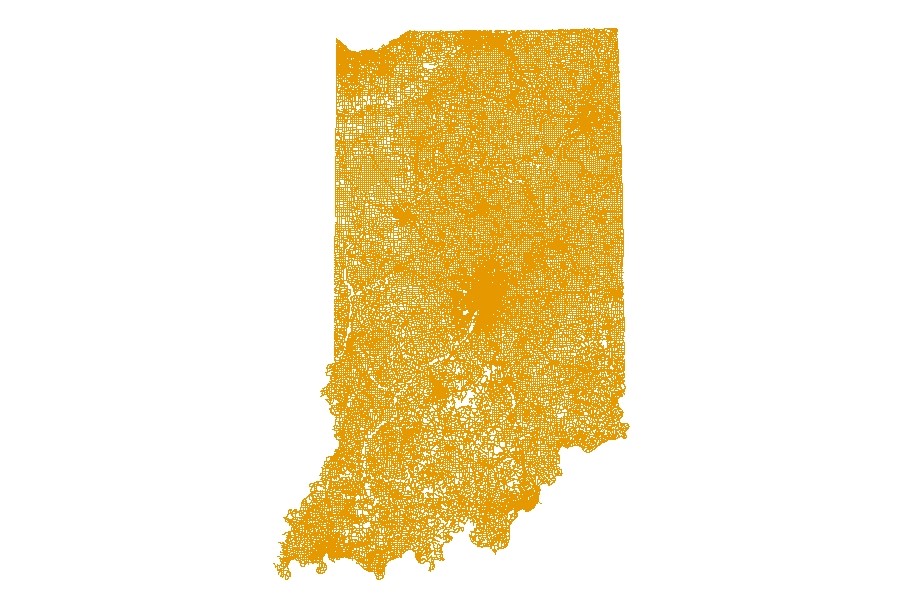

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Indiana Federal Aid Line Inventory created as an ESRI polyline shapefile consisting of a Feature polyline geometry. The data set was compiled by Road Inventory of the Indiana GIS Department of Transportation (INDOT) . Dataset is classified as sde Feature Class. The Feature Class is projected Coordinate System: NAD 1983, UTM, Zone 16 N. The Projections is Transverse Mercator.</SPAN></P><P><SPAN>Each Federal Aid Line Inventory is placed as to Position, with a From and To Measure. Federal Aid can be described as Urban On, Off System, NHS Non Interstate, Rural On, and Interstates. Federal Aid Line Inventory is Dated as of 2006-2015.</SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Service Item Id: d934bd9b878344e9bd5578d58c524aef

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 405781.065
YMin: 4181491.75
XMax: 691585.25
YMax: 4625439.635
Spatial Reference: 26916  (26916)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: FEDERAL_AID
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSLSSolid
Color: [130, 130, 130, 255]
Width: 1
Default Label:
UniqueValueInfos:
• Value: 2
  Label: NHS Non Interstate
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [183, 252, 179, 255]
  Width: 1
• Value: 3
  Label: Rural On
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [252, 210, 184, 255]
  Width: 1
• Value: 7
  Label: Interstates
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [191, 243, 255, 255]
  Width: 1
• Value: 8
  Label: Urban On
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [182, 185, 252, 255]
  Width: 1
• Value: 1
  Label: Off System
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [224, 224, 224, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: FEDERAL_AID

Fields:

• FEDERAL_AID ( type: esriFieldTypeSmallInteger, alias: Federal Aid, editable: true, nullable: false, defaultValue: 1, modelName: Federal_Aid , Coded Values: [1: Off System] , [2: NHS Non Interstate] , [3: Rural On] , ...2 more... )
• CREATED_BY ( type: esriFieldTypeString, alias: Created By, editable: false, nullable: true, length: 25, defaultValue: null, modelName: Created_by )
• DATE_CREATED ( type: esriFieldTypeDate, alias: Date Created, editable: false, nullable: true, length: 8, defaultValue: null, modelName: Date_Created )
• EDITED_BY ( type: esriFieldTypeString, alias: Edited By, editable: false, nullable: true, length: 25, defaultValue: null, modelName: Edited_By )
• DATE_EDITED ( type: esriFieldTypeDate, alias: Date Edited, editable: false, nullable: true, length: 8, defaultValue: null, modelName: Date_Edited )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GLOBALID )
• EVENT_ID ( type: esriFieldTypeString, alias: EventID, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Event_ID )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.LEN, editable: false, nullable: false, defaultValue: null, modelName: SHAPE.LEN )

Types:

ID: 2
Name: NHS Non Interstate
Domains:
• FEDERAL_AID:
  Inherited
• RECORD_STATUS:
  Inherited
Templates:
• Name: NHS Non Interstate
  Description:
  Prototype:
  EVENT_ID: null
  FEDERAL_AID: 2

  Drawing Tool: esriFeatureEditToolLine

---

ID: 3
Name: Rural On
Domains:
• FEDERAL_AID:
  Inherited
• RECORD_STATUS:
  Inherited
Templates:
• Name: Rural On
  Description:
  Prototype:
  EVENT_ID: null
  FEDERAL_AID: 3

  Drawing Tool: esriFeatureEditToolLine

---

ID: 7
Name: Interstates
Domains:
• FEDERAL_AID:
  Inherited
• RECORD_STATUS:
  Inherited
Templates:
• Name: Interstates
  Description:
  Prototype:
  EVENT_ID: null
  FEDERAL_AID: 7

  Drawing Tool: esriFeatureEditToolLine

---

ID: 8
Name: Urban On
Domains:
• FEDERAL_AID:
  Inherited
• RECORD_STATUS:
  Inherited
Templates:
• Name: Urban On
  Description:
  Prototype:
  EVENT_ID: null
  FEDERAL_AID: 8

  Drawing Tool: esriFeatureEditToolLine

---

ID: 1
Name: Off System
Domains:
• FEDERAL_AID:
  Inherited
• RECORD_STATUS:
  Inherited
Templates:
• Name: Off System
  Description:
  Prototype:
  EVENT_ID: null
  FEDERAL_AID: 1

  Drawing Tool: esriFeatureEditToolLine

---

Capabilities: Query,ChangeTracking

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: true

Supports OidReservation: true

Edit Fields Info:

• Creation Date Field: DATE_CREATED
• Creator Field: CREATED_BY
• Edit Date Field: DATE_EDITED
• Editor Field: EDITED_BY

Supports Query With Historic Moment: true

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
