View In:   ArcGIS Online Map Viewer

Name: Des detail

Display Field: FROM_DATE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

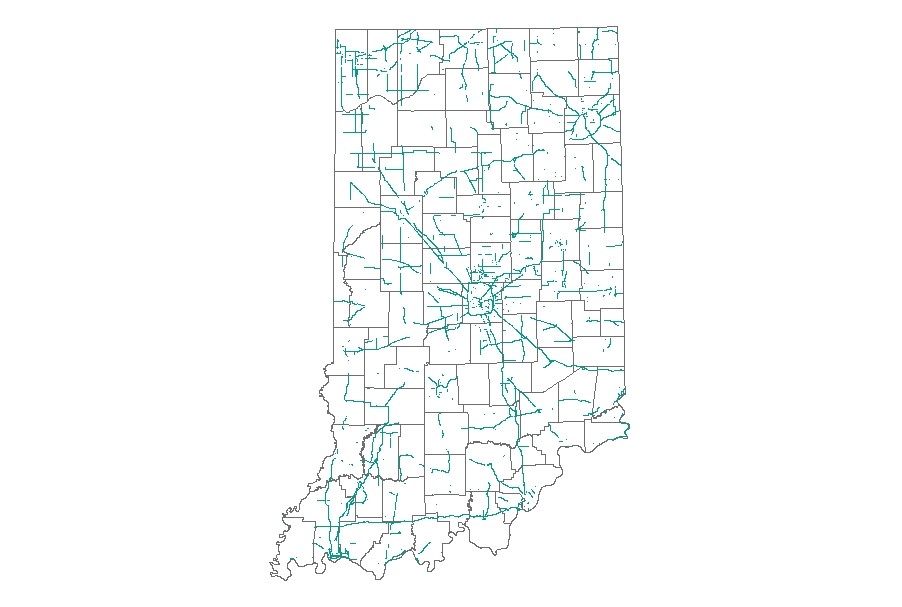

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Indiana Des Detail (s) Inventory created as an ESRI polyline shapefile consisting of a Feature polyline geometry. The data set was compiled by INDOT System Assesment Managers on State projects and Project managers on local projects. Dataset is classified as sde Feature Class. The Feature Class is projected Coordinate System: NAD 1983, UTM, Zone 16 N. The Projections is Transverse Mercator.</SPAN></P><P><SPAN>Each Des Detail Line Inventory is placed as to Position, From and To Measure. Des Detail (s) is referenced by DES #. Des Detail (s) Line Inventory is Dated as of 2014-2015.</SPAN></P><P><SPAN>This layer was developed to meet the spatial requirements of FMIS 5.0, a federally mandated program.</SPAN></P></DIV></DIV></DIV>

Service Item Id: c988f88416844ddebaf9d286f4b9fc44

Copyright Text: Indiana Des Detail (s) Line Inventory is an sde Feature Class created by INDOT personnel deemed to have intimate knowledge as to the location of planned projects.

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 408954.425
YMin: 4181697.5001
XMax: 691585.25
YMax: 4625038.555
Spatial Reference: 26916  (26916)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [145, 45, 55, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• FROM_DATE ( type: esriFieldTypeDate, alias: From Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: From_Date )
• TO_DATE ( type: esriFieldTypeDate, alias: To Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: To_Date )
• EVENT_ID ( type: esriFieldTypeString, alias: EventID, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Event_ID )
• ROUTE_ID ( type: esriFieldTypeString, alias: RouteID, editable: true, nullable: true, length: 17, defaultValue: null, modelName: Route_ID )
• FROM_MEASURE ( type: esriFieldTypeDouble, alias: From Measure, editable: true, nullable: true, defaultValue: null, modelName: From_Measure )
• TO_MEASURE ( type: esriFieldTypeDouble, alias: To Measure, editable: true, nullable: true, defaultValue: null, modelName: To_Measure )
• RECORD_STATUS ( type: esriFieldTypeSmallInteger, alias: Record_Status, editable: true, nullable: true, defaultValue: null, modelName: Record_Status )
• DES ( type: esriFieldTypeString, alias: DES, editable: true, nullable: false, length: 7, defaultValue: null, modelName: Guardrail_Type )
• DATE_VALIDATED ( type: esriFieldTypeDate, alias: Date_Validated, editable: true, nullable: true, length: 8, defaultValue: null, modelName: Guardrail_End_Type )
• CREATED_BY ( type: esriFieldTypeString, alias: Created By, editable: false, nullable: true, length: 25, defaultValue: null, modelName: Created_by )
• DATE_CREATED ( type: esriFieldTypeDate, alias: Date Created, editable: false, nullable: true, length: 8, defaultValue: null, modelName: Date_Created )
• EDITED_BY ( type: esriFieldTypeString, alias: Edited By, editable: false, nullable: true, length: 25, defaultValue: null, modelName: Edited_By )
• DATE_EDITED ( type: esriFieldTypeDate, alias: Date Edited, editable: false, nullable: true, length: 8, defaultValue: null, modelName: Date_Edited )
• LOCERROR ( type: esriFieldTypeString, alias: LOCERROR, editable: true, nullable: true, length: 100, defaultValue: null, modelName: LOCERROR )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GLOBALID )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.LEN, editable: false, nullable: false, defaultValue: null, modelName: SHAPE.LEN )

Templates:

• Name: Des detail
  Description:
  Prototype:
  LOCERROR: null
  FROM_DATE: null
  TO_DATE: null
  EVENT_ID: null
  ROUTE_ID: null
  FROM_MEASURE: null
  TO_MEASURE: null
  RECORD_STATUS: null
  DES:
  DATE_VALIDATED: null

  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query,Extract,ChangeTracking

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: true

Supports OidReservation: true

Edit Fields Info:

• Creation Date Field: DATE_CREATED
• Creator Field: CREATED_BY
• Edit Date Field: DATE_EDITED
• Editor Field: EDITED_BY

Supports Query With Historic Moment: true

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
