View In:   ArcGIS Online Map Viewer

Name: Grade

Display Field: FROM_DATE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

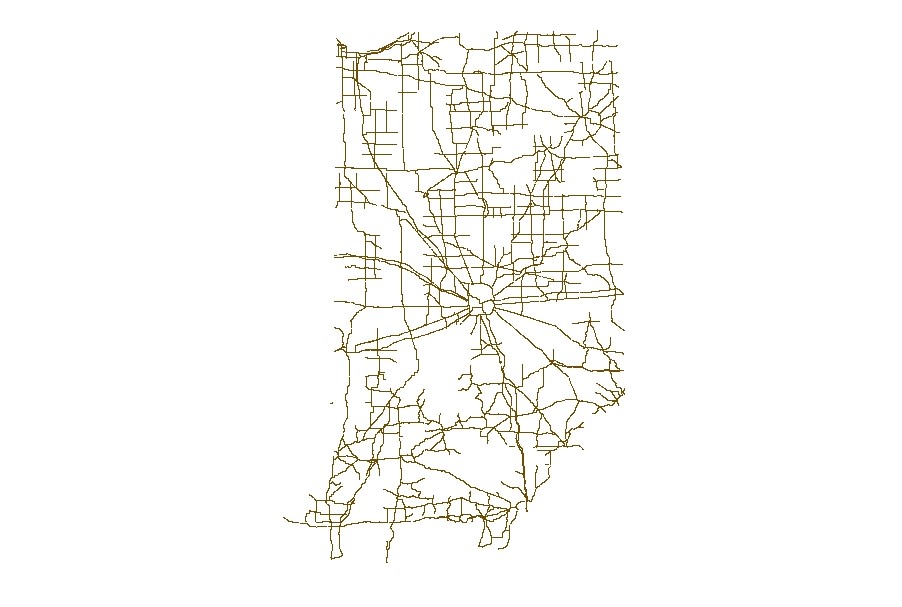

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Indiana Grade Line Inventory created as an ESRI polyline shapefile consisting of a Feature polyline geometry. The data set was compiled by Road Inventory of the Indiana GIS Department of Transportation (INDOT) . Dataset is classified as sde Feature Class. The Feature Class is projected Coordinate System: NAD 1983, UTM, Zone 16 N. The Projections is Transverse Mercator.</SPAN></P><P><SPAN>Each Grade Line Inventory is placed as to Position, From and To Measure, by Route, and contains Grade classifications. Grade Classification are described according to the following groups: 0.0-0.4, 0.5-2.4, 2.5-4.4, 4.5-6.4, 6.5-8.4 and 8.5 and greater. Grade Line Inventory is Dated as of 2012-2015.</SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Service Item Id: c988f88416844ddebaf9d286f4b9fc44

Copyright Text: Indiana Grade Line Inventory is an sde Feature Class created by Road Inventory of the Indiana GIS Department of Transportation (INDOT)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 413813.5
YMin: 4195157.715
XMax: 688346.8338
YMax: 4623781.6725
Spatial Reference: 26916  (26916)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [42, 50, 145, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• FROM_DATE ( type: esriFieldTypeDate, alias: From Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: From_Date )
• TO_DATE ( type: esriFieldTypeDate, alias: To Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: To_Date )
• EVENT_ID ( type: esriFieldTypeString, alias: EventID, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Event_ID )
• ROUTE_ID ( type: esriFieldTypeString, alias: RouteID, editable: true, nullable: true, length: 17, defaultValue: null, modelName: Route_ID )
• FROM_MEASURE ( type: esriFieldTypeDouble, alias: From Measure, editable: true, nullable: true, defaultValue: null, modelName: From_Measure )
• TO_MEASURE ( type: esriFieldTypeDouble, alias: To Measure, editable: true, nullable: true, defaultValue: null, modelName: To_Measure )
• RECORD_STATUS ( type: esriFieldTypeSmallInteger, alias: Record_Status, editable: true, nullable: true, defaultValue: null, modelName: Record_Status , Coded Values: [0: Work In Progress] , [1: Proposed] , [2: Withdrawn] , ...5 more... )
• GRADE_CLASS ( type: esriFieldTypeString, alias: Grade Class, editable: true, nullable: true, length: 1, defaultValue: null, modelName: Grade_Class , Coded Values: [A: 0.0 – 0.4] , [B: 0.5 – 2.4] , [C: 2.5 – 4.4] , ...3 more... )
• SLOPE ( type: esriFieldTypeDouble, alias: Slope, editable: true, nullable: true, defaultValue: null, modelName: Slope )
• YEAR_RECORDED ( type: esriFieldTypeDate, alias: Year_Recorded, editable: true, nullable: true, length: 8, defaultValue: null, modelName: Year_Recorded )
• CREATED_BY ( type: esriFieldTypeString, alias: Created By, editable: false, nullable: true, length: 25, defaultValue: null, modelName: Created_by )
• DATE_CREATED ( type: esriFieldTypeDate, alias: Date Created, editable: false, nullable: true, length: 8, defaultValue: null, modelName: Date_Created )
• EDITED_BY ( type: esriFieldTypeString, alias: Edited By, editable: false, nullable: true, length: 25, defaultValue: null, modelName: Edited_By )
• DATE_EDITED ( type: esriFieldTypeDate, alias: Date Edited, editable: false, nullable: true, length: 8, defaultValue: null, modelName: Date_Edited )
• LOCERROR ( type: esriFieldTypeString, alias: LocError, editable: true, nullable: true, length: 100, defaultValue: null, modelName: LocError )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• DATE_ATTR_EFFECTIVE ( type: esriFieldTypeDate, alias: Date Attribute Effective, editable: true, nullable: true, length: 8, defaultValue: null, modelName: DATE_ATTR_EFFECTIVE )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GLOBALID )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.LEN, editable: false, nullable: false, defaultValue: null, modelName: SHAPE.LEN )

Templates:

• Name: Grade
  Description:
  Prototype:
  DATE_ATTR_EFFECTIVE: null
  FROM_DATE: null
  TO_DATE: null
  EVENT_ID: null
  ROUTE_ID: null
  FROM_MEASURE: null
  TO_MEASURE: null
  RECORD_STATUS: null
  GRADE_CLASS: null
  SLOPE: null
  YEAR_RECORDED: null
  LOCERROR: null

  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query,Extract,ChangeTracking

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: true

Supports OidReservation: true

Edit Fields Info:

• Creation Date Field: DATE_CREATED
• Creator Field: CREATED_BY
• Edit Date Field: DATE_EDITED
• Editor Field: EDITED_BY

Supports Query With Historic Moment: true

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
