Name: Sample Section

Display Field: FROM_DATE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Indiana Sample Section Line Inventory created as an ESRI polyline shapefile consisting of a Feature polyline geometry. The data set was compiled by Road Inventory of the Indiana GIS Department of Transportation (INDOT) . Dataset is classified as sde Feature Class. The Feature Class is projected Coordinate System: NAD 1983, UTM, Zone 16 N. The Projections is Transverse Mercator.</SPAN></P><P><SPAN>Each Sample Section Line Inventory is placed as to Position, From and To Measure, by Route, and contains the following classifications by type; Widening Obstacle, Widening Potential, Number of Signals, and Number of Stop Signs. Sample Sections are created based on the methodology that is described in the current FHWA HPMS Field Manual. </SPAN></P><P><SPAN>Sample Section line inventory is as of 2013-2015.</SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Service Item Id: 1c8f5fbfa21049f2bfdd7e5d60b52fa6

Copyright Text: The Sample Section is an sde Feature Class created by Indiana GIS Department of Transportation (INDOT)

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 413813.5
YMin: 4193772.2501
XMax: 688379.4433
YMax: 4623751.5001
Spatial Reference: 26916  (26916)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [153, 170, 83, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• FROM_DATE ( type: esriFieldTypeDate, alias: From Date, length: 8 )
• TO_DATE ( type: esriFieldTypeDate, alias: To Date, length: 8 )
• EVENT_ID ( type: esriFieldTypeString, alias: EventID, length: 50 )
• ROUTE_ID ( type: esriFieldTypeString, alias: RouteID, length: 17 )
• FROM_MEASURE ( type: esriFieldTypeDouble, alias: From Measure )
• TO_MEASURE ( type: esriFieldTypeDouble, alias: To Measure )
• RECORD_STATUS ( type: esriFieldTypeSmallInteger, alias: Record_Status , Coded Values: [0: Work In Progress] , [1: Proposed] , [2: Withdrawn] , ...5 more... )
• SECTION_ID ( type: esriFieldTypeString, alias: Section_ID, length: 50 )
• WIDENING_OBSTACLE ( type: esriFieldTypeString, alias: Widening Obstacle, length: 1 , Coded Values: [X: No obstacles] , [A: Dense development] , [B: Major transportation facilities] , ...5 more... )
• WIDENING_POTENTIAL ( type: esriFieldTypeSmallInteger, alias: Widening Potential )
• NUMBER_OF_SIGNALS ( type: esriFieldTypeSmallInteger, alias: Number Signals )
• NUMBER_STOP_SIGNS ( type: esriFieldTypeSmallInteger, alias: Stop Signs )
• NUMBER_OTHER ( type: esriFieldTypeSmallInteger, alias: At Grade Other )
• CREATED_BY ( type: esriFieldTypeString, alias: Created By, length: 25 )
• DATE_CREATED ( type: esriFieldTypeDate, alias: Date Created, length: 8 )
• EDITED_BY ( type: esriFieldTypeString, alias: Edited By, length: 25 )
• DATE_EDITED ( type: esriFieldTypeDate, alias: Date Edited, length: 8 )
• LOCERROR ( type: esriFieldTypeString, alias: LocError, length: 100 )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• DATE_ATTR_EFFECTIVE ( type: esriFieldTypeDate, alias: Date Attribute Effective, length: 8 )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

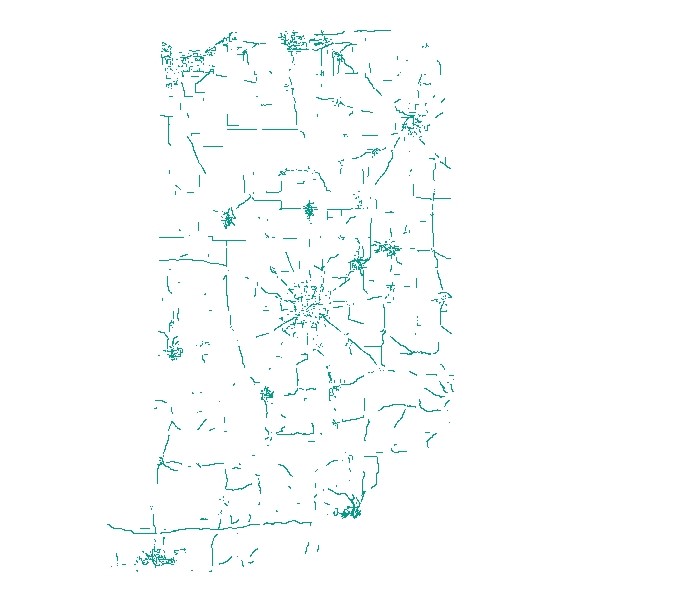

  Iteminfo   Thumbnail   Metadata
